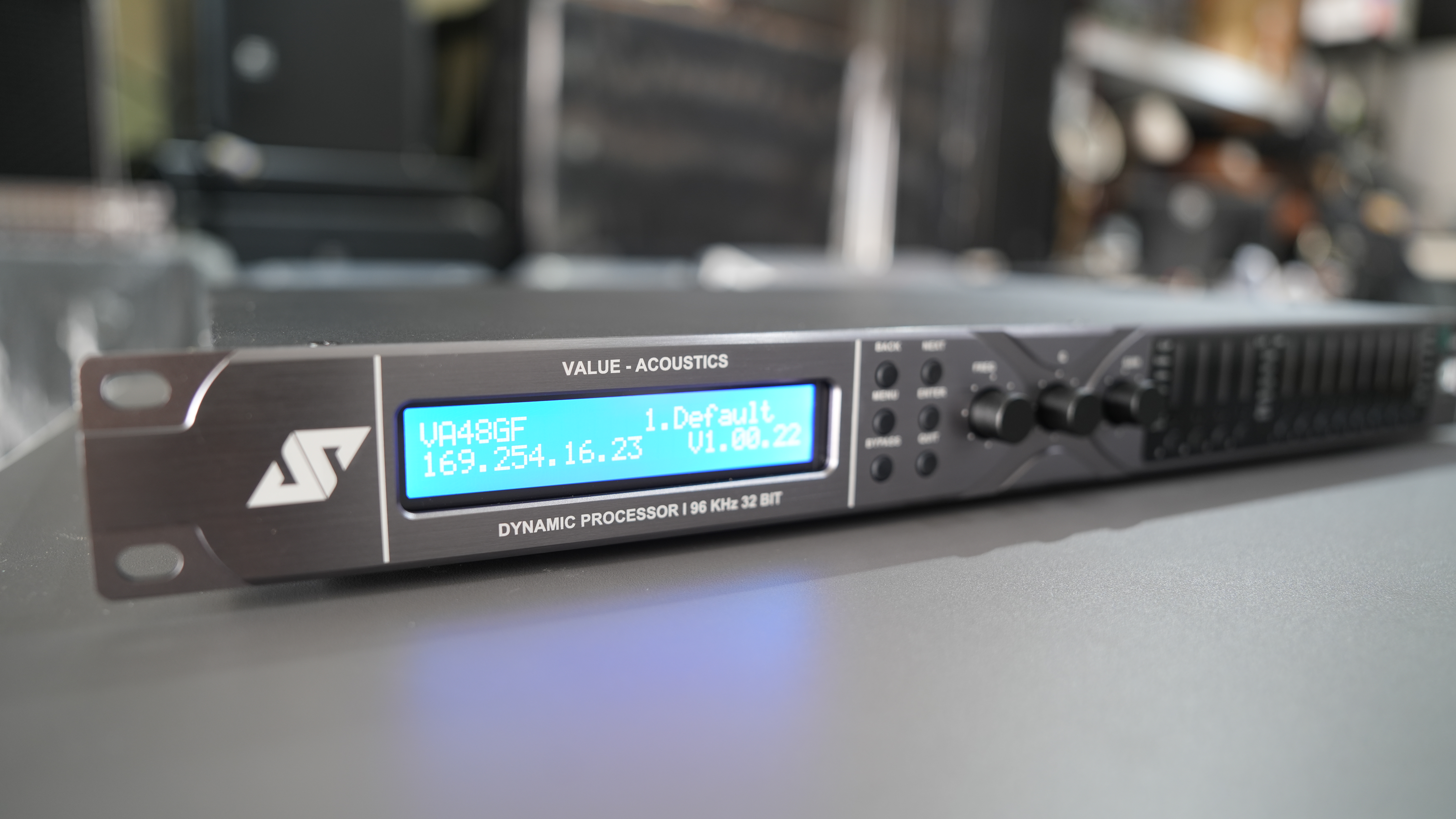

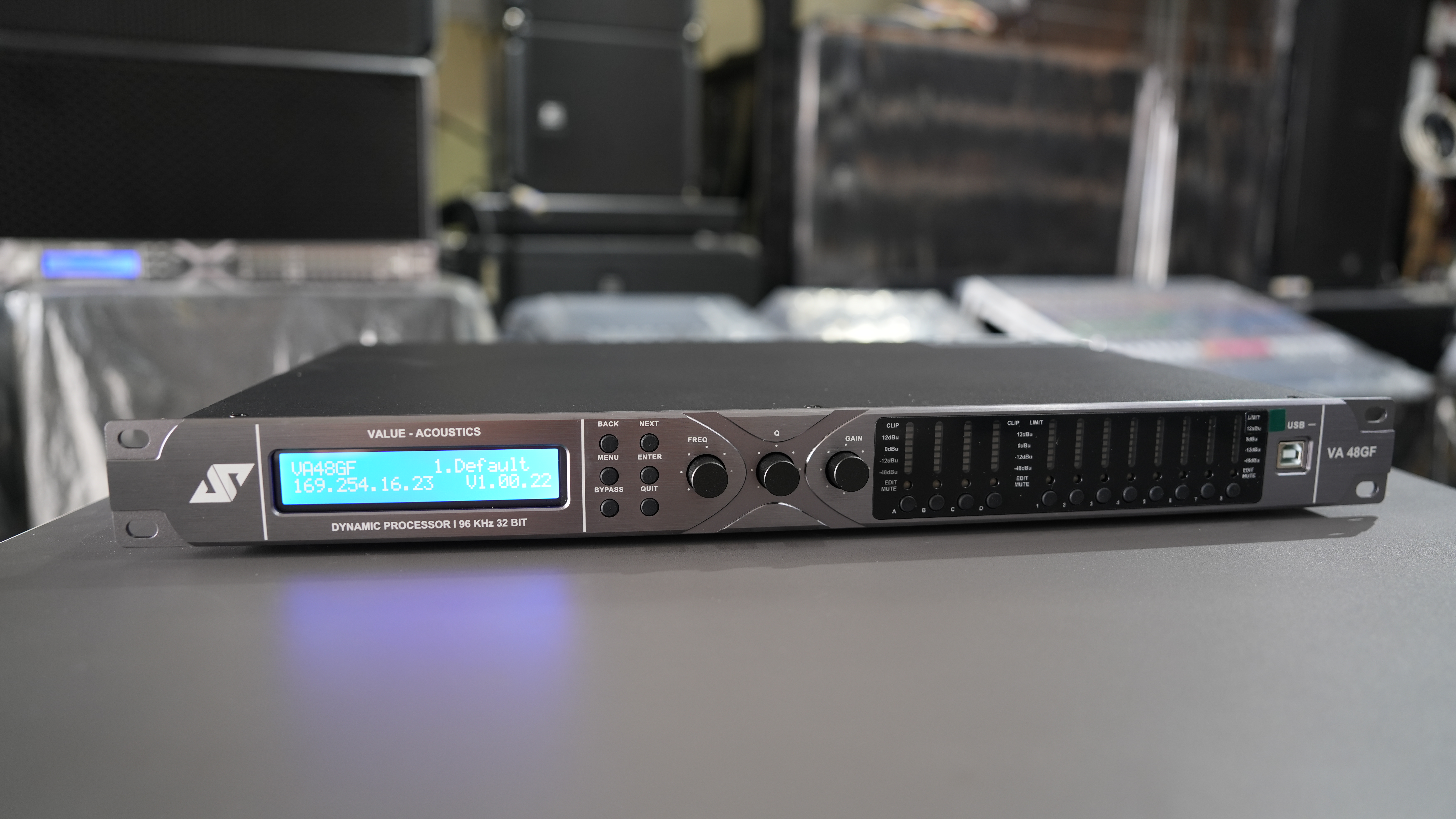

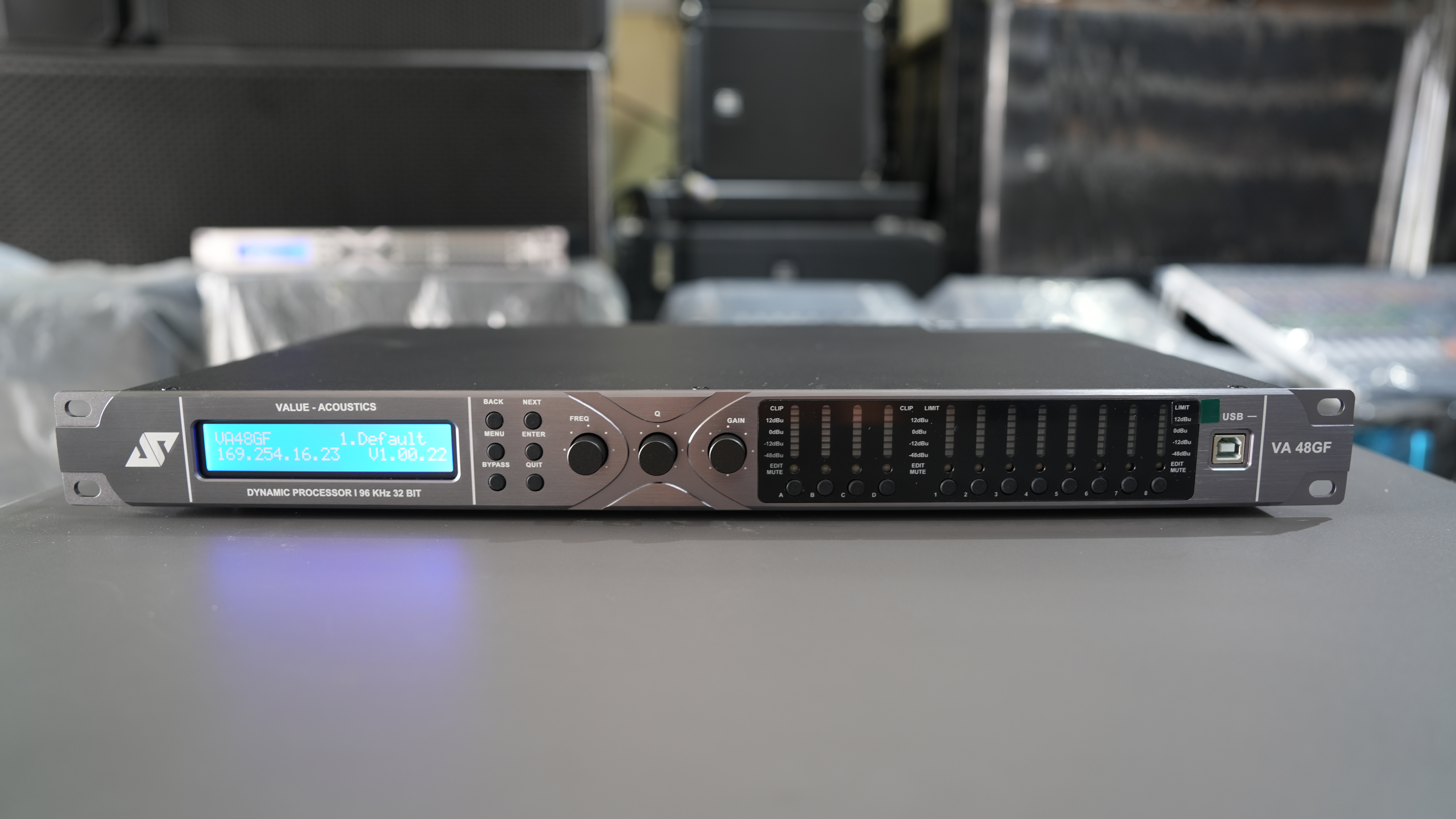

PROSESSOR VALUE ACOUSTICS VA 48GF
Dynamic Prosessor Premium Value Acoustics VA-48GF 4in 8out
Rp7999000.00Rp7799000.00
Stok habis
Dynamic Prosessor Premium Value Acoustics VA-48GF
Di desain dengan pemilihan komponen elektronik premium,
Prosesor Generasi terbaru Untuk kebutuhan prosesing data lebih Extreme.
Fiture:
4 analog inputs and 8 analog outputs.
Each input support to switch AES3 signal.
4 channels Dante network audio optional.
High performance DSP process, 96k 32bit
Input with 15 bands PEQ, output with 10 bands PEQ.
Support HPF and LPF with Butterworth\Bessel\Linkwitz-Riley. Support LSLV and
HSLV. Support ALL-PASS, Band pass, Band stop filters, Phase, Notch filter, 3 kinds
of High pass and Low pass.
Input with 3 bands Dynamic EQ.
Input with 4 x 512Taps FIR linear phase setting.
Output with 8x 512Taps FIR linear phase setting.
Standar dFIR automatic linear phase function designer.
Support presets archiving and locking, hide setting parameters.
Control connections: USB or TCP/IP. Configured with RS232 central control
connection.
NiceGUIwindows7/8/10/11 software .
Colourful LED indicator for input and output signal.
High analytical power, wide dyna
Deskripsi:
1.DSPProcess
Process: ADISHARC 21489 450MHz 32-bit 96KHz
2.Analog Audio Inputs and Outputs
Input: 4channelsbalanced.
Input interface: XLR(Neutrik®)
Input impedance: 20KΩ
Maxinput level: 20dBu/Line
Output: 8channels balanced.Linelevel
Output interface: XLR(Neutrik®)
Output impedance: 50Ω
3.Audio Performance Specifications
Frequency response: 20Hz-20kHz(+-0.5dB)/Line
THD+N:-93dB(@0dBu,1kHz,A-wt)/Line
Ground noise: 20Hz-20kHz,A-wt,-93dBu
SNR: 113dB(@16dBu,1kHz,A-wt)/Line

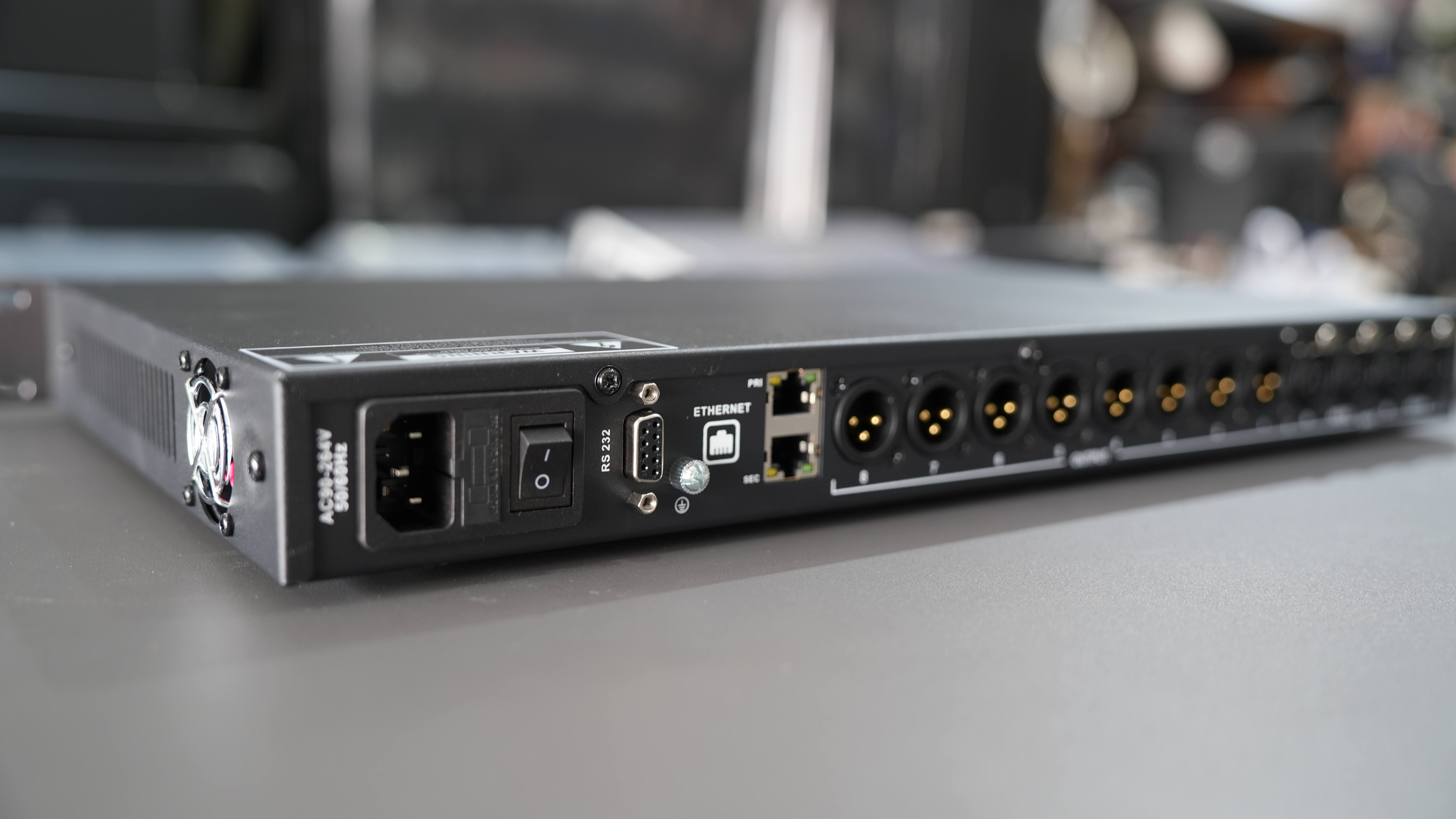

4.Connect Ports and Indicators
USB: TypeA-B, freedriver
RS232: Serial port communication
TCP/IP interface: RJ-45
Indicator light: Clip, level,edit,mute
5.Electrical and Physical
Supply: AC100V～240V50/60Hz
Products Dimensions 483mmx215mmx44.5mm
Packaged Dimensions 537mmx343mmx77mm
Net Weight 3.8kg
Packaged Weight 4.2kg
Operating temperature:-20℃～80℃
