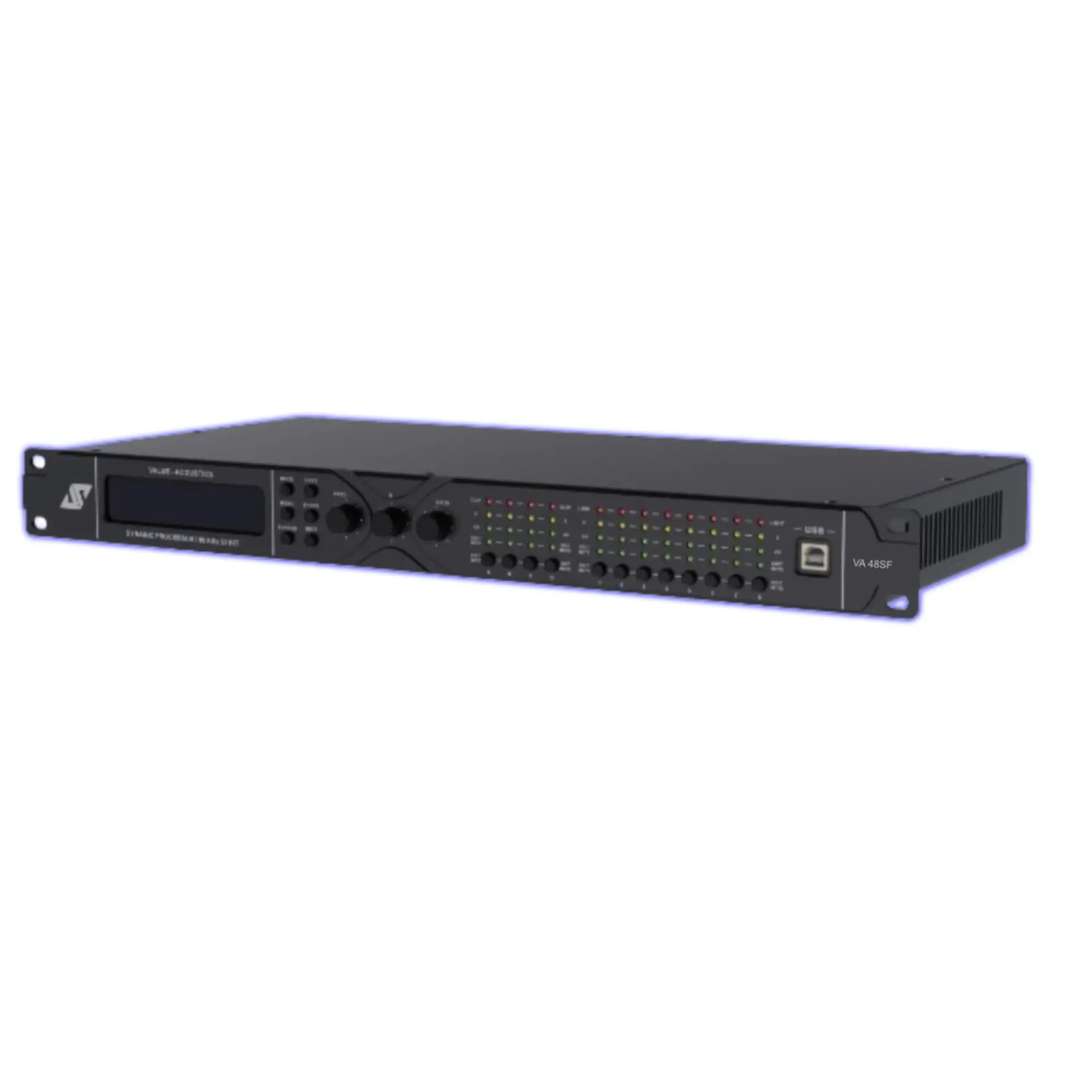

Dsp Prosessor Value Acoustics VA 48SF

Diskon!

Dsp Prosessor Value Acoustics VA 48SF

Dsp Prosessor Value Acoustics VA 48SF - Gambar 2

Dsp Prosessor Value Acoustics VA 48SF

Harga aslinya adalah: Rp5.499.000.Harga saat ini adalah: Rp4.799.000.

+ Free Shipping

Features :

4 analog inputs and 8 analog outputs.
High performance DSP process, 96khz 32bit
Input with 15 bands PEQ, output with 10 bands PEQ.
Support HPF and LPF with Butterworth\Bessel\Linkwitz-Riley. Support LSLV and
HSLV,ALL-PASS filters.
Input with 3 bands Dynamic EQ.
Input with 4 x 512Taps FIR linear phase setting.
Output with 8 x 256 Taps FIR linear phase setting.
Support presets archiving and locking, hide setting parameters.
Control connections: USB or TCP/IP. Configured with RS232 central control
connection.
Nice GUI windows7/8/10/11 software

Ketersediaan: Stok 15

SKU: va48sf Kategori: Dsp Prosessor Brand: Value Acoustics

Deskripsi:

1.DSP Process

Process: ADI SHARC 96KHz 32bit

2.Analog Audio Inputs and Outputs

Input: 3or4channelsbalanced.
Input interface: XLR(Neutrik®)
Input impedance: 20KΩ
Maxinput level: 16dBu/Line
Output: 6or8channelsbalanced.Linelevel
Output interface: XLR(Neutrik®)
Output impedance: 150Ω

3.Audio Performance Specifications

Frequencyresponse: 20Hz-20kHz(+-0.5dB)/Line
THD+N:-90dB(@0dBu,1kHz,A-wt)/Line
Groundnoise: 20Hz-20kHz,A-wt,-93dBu
SNR: 108dB(@16dBu,1kHz,A-wt)/Line

4.Connect Ports and Indicators

USB: TypeA-B, freedriver
RS232: Serialportcommunication
TCP/IPinterface: RJ-45
Indicator light: Clip, level,edit,mute

5.Electrical and Physical

Supply: AC100V～240V50/60Hz
ProductsDimensions 483mmx215mmx44.5mm
PackagedDimensions 537mmx343mmx77mm
NetWeight 3.6kg
PackagedWeight 4.0kg
Operatingtemperature:-20℃～80℃

Berat	7 kg
