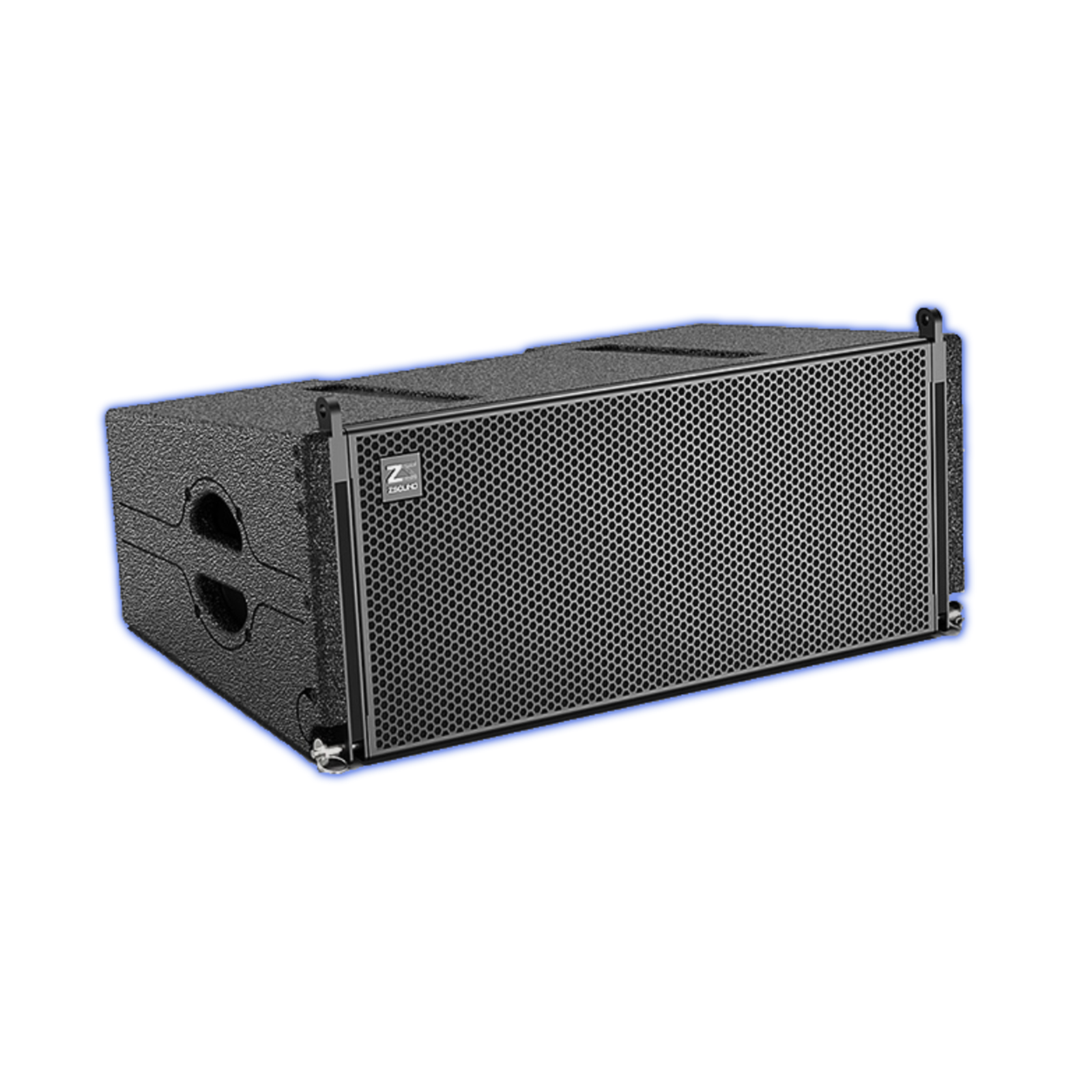

Loudspeaker Zsound LA210

Technical Specification
Parameter Name Parameter Value
FREQUENCY RESPONSE 40 Hz-18 kHz (-10 dB)
NOMINAL COVERAGE 100°(H), 10°(V) adjustable
SENSITIVITY (@1w/1m) HF/LF: 113 dB SPL / 97 dB SPL
POWER RATING 3200W PEAK
NOMINAL IMPEDANCE HF/LF: 16Ω / 16Ω
MAXIMUM SPL 139 dB
DRIVERS LF: 2×10″ woofer (75mm voice coil)HF: 1×3″ compression driver

Physical Data
Parameter Name Parameter Value
Dimensions (HxWxD) 303.4 x 730 x 464.5 mm
WEIGHT 35 kg / 77 lbs
CONNECTORS 2 x NL4 connectors
SPEAKER CABLES 1+1-…Full range; 2+2-…NC
MATERIALS 15mm, 18mm Baltic birch plywood
FINISH Black Polyurea paintings
GRILLE Black epoxy mesh grille with acoustically reticulated cloth
RIGGING 0°, 1°, 2°, 3°, 4°, 5°, 6°, 7°, 8°, 9°, 10° adjustable
