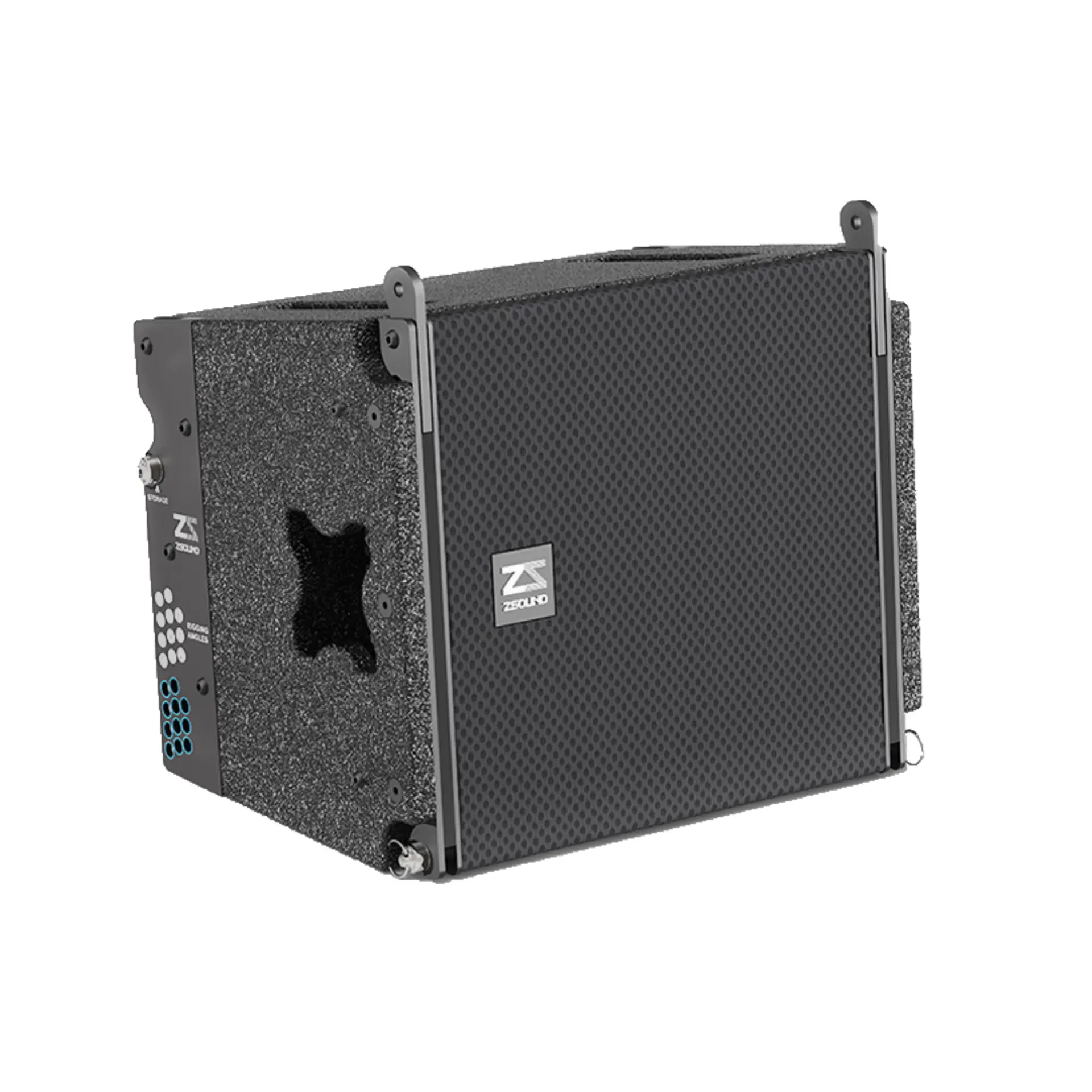

Loudspeaker Zsound LC10

Technical Specification
Parameter Name Parameter Value
FREQUENCY RESPONSE 80 Hz-18 kHz (±3dB), 60 Hz-20 kHz (-10dB)
NOMINAL COVERAGE 100°(H), 100°(V)
SENSITIVITY (@1w/1m) HF/LF: 112 dB SPL / 96 dB SPL
POWER RATING (AES) HF/LF: 80W / 350W (AES)
NOMINAL IMPEDANCE HF/LF: 16Ω / 16Ω
MAXIMUM SPL HF: 137 dB SPL peakLF: 134 dB SPL peak
DRIVERS LF: 1×10″ woofer (75mm voice coil)HF: 1×3″ compression driver
Physical Data
Parameter Name Parameter Value
DIMENSIONS (HxWxD) 332 x 360 x 260 mm
WEIGHT 13 kg / 28.6 lbs
CONNECTORS 2 x NL4 connectors
SPEAKER CABLES 1+1-
MATERIALS 15mm, 18mm Baltic birch plywood
FINISH Black Polyurea paintings
GRILLE Black epoxy mesh grille with acoustically reticulated cloth
RIGGING 0°, 1°, 2°, 3°, 4°, 5°, 6°, 7°, 8°, 9°, 10° adjustable
